Your Professional Tape Casting Machine Supplier
Zhoushan Jinqiu Machinery Co., Ltd. was established in May 2001 (with over 20 years of experience in manufacturing cast film machines). It currently has more than 70 employees, covers an area of over 40,000 square meters, and has more than 10 professional technical R&D personnel.Our company's main products include cast film machines (coating machines), 49/S electronic crystal casings, oil pump plungers and metal surface treatment.
-

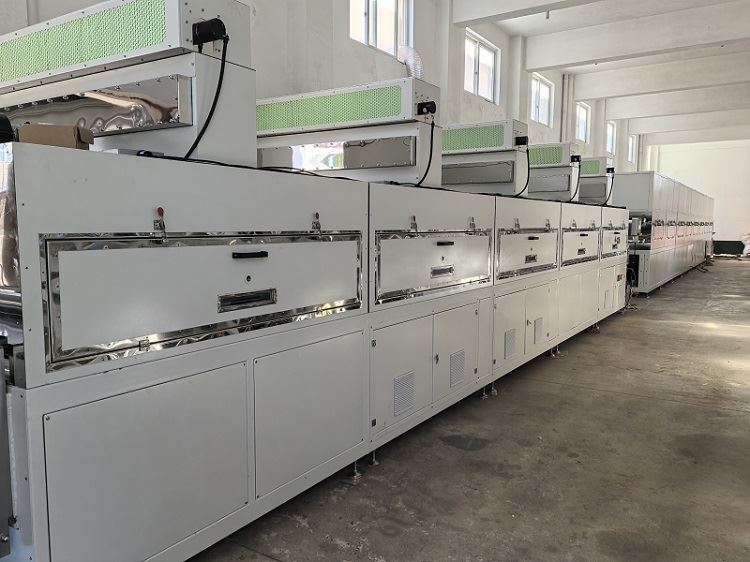

![Large Production Casting Machine]()
Large Production Casting MachineTechnical Parameters：Large Production Casting Machine ZSJQ-1300view more -

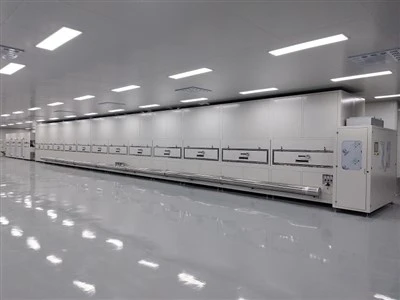

![Large Tape Casting Machine]()
Large Tape Casting MachineThe domestic cast film production line can be divided into 2500mm, 3000mm, 3500mm and 5000mm according to the film width, and can be divided into three layers, five layers and seven layers...view more -

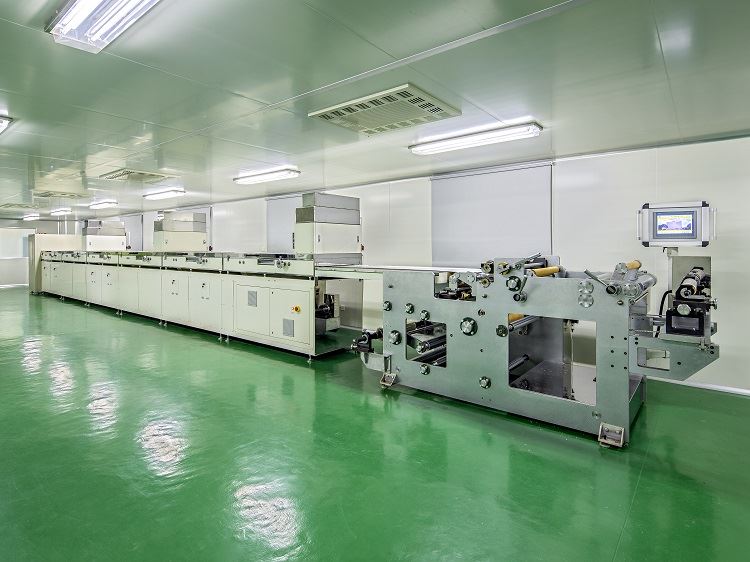

![Precision Ultra-thin Tape Casting Machine]()
Precision Ultra-thin Tape Casting MachineTechnical Parameters:Precision Ultra-thin Casting Machine ZSJQ-650view more
Casting Thickness:3-1200μm
Mechanical Speed:0.02-5M/min
Casting Width:600mm，（can be customized according to... -

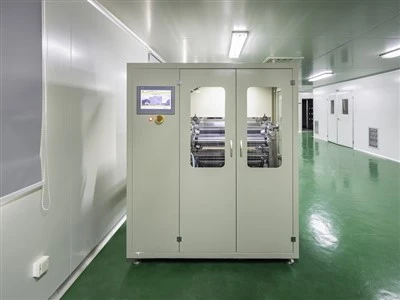

![Small Tape Casting Machine]()
Small Tape Casting MachineThe laboratory small tape casting machine is an experimental equipment for preparing polymer film materials. It uses the oven method or vacuum method to prepare materials. It has the...view more -

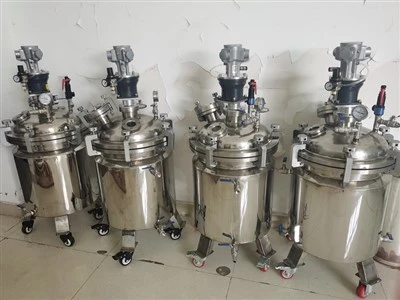

![Vacuum Degassing Mixing Tank]()
Vacuum Degassing Mixing TankThe deaerator is a kind of mixing equipment that mixes basic materials and discharges bubbles. It is mainly used in the mixing and mixing fields of high, sharp and precise products such as...view more -

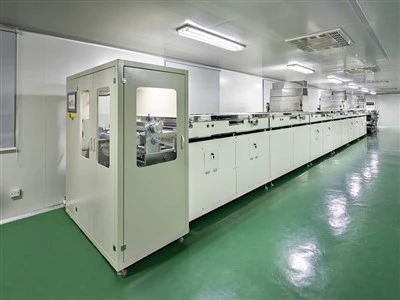

![Thick Film Tape Casting Machine]()
Thick Film Tape Casting MachineAutomatic continuous feeding system liquid level control. The deviation is ± 0.1mm;view more
Advanced laser displacement sensor controls liquid level and dosage;
High precision clearance... -

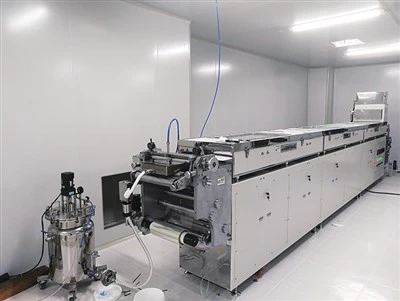

![Laboratory Tape Caster]()
Laboratory Tape CasterTechnical Parameters:Experimental Type ZSJQ-400view more
Casting Thickness:5-1200μm
Mechanical Speed:0.02-5M/min
Casting Width:300mm，（Customizable）
Power Supply:380V, 50HZ，... -

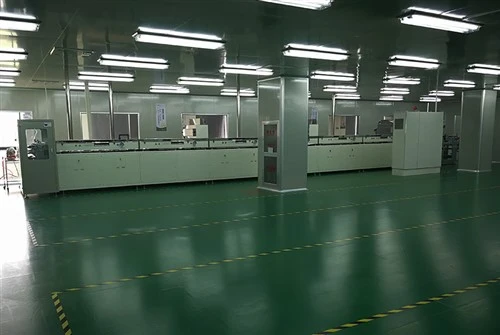

![Ceramic Tape Casting Machine]()
Ceramic Tape Casting Machine12 inch MCGS color touch screen, human-computer friendly interface, fully integrated interface display and control of heating, speed, liquid level, etc.view more
Siemens S7-200 PLC is equipped with... -

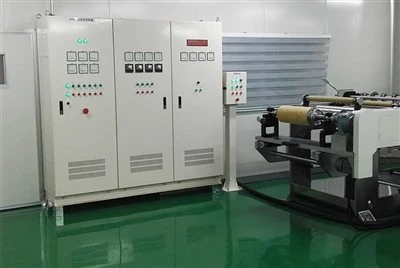

![Tape Casting Equipment]()
Tape Casting EquipmentCasting machine refers to special equipment for making cast film. High-precision electronic ceramic casting machine uses alumina as the main raw material for ceramic casting. First, the crushed...view more -
![Cast Film Equipment]()
Cast Film EquipmentCast film is a kind of non stretching and non oriented flat extruded film produced by melt salivation quenching. There are two ways: monolayer salivation and multi-layer co extrusion salivation....view more -

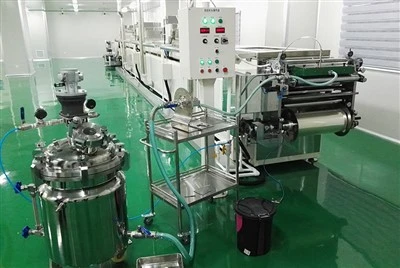

![Deaeration Machine]()
Deaeration MachineThe deaerator is a kind of mixing equipment that mixes basic materials and discharges bubbles. It is mainly used in the mixing and mixing fields of high, sharp and precise products such as...view more
Why Choose Us
Foreign Trade Market
Not only have been our products the marketing network throughout china,but also our products have been exported to Russia,the Middle East,Africa,Southeast Asia,South America,South Asia,totally more than 20 countries and regions.
Certification
It holds over 30 invention and utility model patents. It has been honored with titles such as "National High-tech Enterprise", "Zhejiang Province Small and Medium-sized Technology Enterprise", "Zhejiang Province Patent Demonstration Enterprise", and "Zhoushan City Patent Demonstration Enterprise", and has passed the ISO9001 quality system certification.
One-Stop Processing Service
From rapid prototyping to mass production, BERGEK provides a one-stop CNC machining service, integrating Casting, 3D printing,laser cutting, welding, plastic injection molding and more. Save up to 30% in costs with our efficient processes.
Quality Control
In production, quality is our constant pursuit. Through strict quality control measures, we ensure every part meets the high standards of our customers. From production to delivery, we strive for excellence and meticulous precision.
Tape Casting Machine Specifications
|
Technical Parameters |
Large Production Casting Machine ZSJQ-1300 |
|
Equipment Specifications(customized length according to customer needs) |
35750*850*2150(Length*Width*Height)(customized length according to customer needs) |
|
PET Carrier Tape |
PET Film Tape (single-sided silicon treatment) Width：1200mm Thickness：100-188μm |
|
Roller Surface Length |
1300 mm |
|
Casting Slurry |
Customers Can Customize the Casting Solution Viscosity：500-50000CPS Solid Ingredients 60%-70% |
|
Casting Thickness |
5-1200μm |
|
Mechanical Speed |
0.02-5M/min |
|
Casting Width |
1100mm,(can be customized according to customer requirements) |
|
Power Supply |
380V, 50HZ, Three-phase Five-wire |
|
Compressed Air |
0.6Mpa |
|
Paint Color |
Designated by Our Company |
|
Drive Direction |
The Relative Film Belt Forward Direction is On The Left |
|
Explosion-proof Method |
Safety-enhanced, Air-purified Explosion-proof Area and Multi-point Protection |
|
Spindle Accuracy |
Within 2μm |
|
Slurry Supply System |
PID, Photoelectric Sensor Control, Fully Automatic Slurry Supply, Accuracy: ±0.05mm Round Shaft Comma Scraper Laser Displacement Photoelectric Sensor Controls Liquid Level Dosage and Height |
|
Casting Scraper Lifting Accuracy |
Within 1μm |
|
Dry Area(customized temperature zones according to customer needs) |
Zone 1 6m floor heating + hot air supply system Zone 2 4m floor heating + hot air supply system Zone 3 4m floor heating + hot air supply system Zone 4 4m floor heating + hot air supply system Zone 5 4m floor heating + hot air supply system Zone 6 4m floor heating + hot air supply system Zone 7 4m floor heating + hot air supply system (customized temperature zones according to customer needs) |
|
Soleplate Temperature Control |
Room Temperature ~ 120℃ (±0.1℃),(temperature has special requirements) |
|
Control Panel |
Fully Automatic Computer Touch Screen System, PLC Control, HMT Human-machine Interface: Can Program and Control The Screen |
|
Tension Control |
Servo Motor Controls The Tension and Corrects The Base Belt Operation, Making it Smooth and Without Fluctuations |
|
Casting Accuracy |
Thickness Within ±2.0% |
|
Scope of Application |
Ceramic Film Casting, Polymer Film Casting, Medical Filter Membrane Casting, Food Adhesive Film Casting, Wave Absorbing Materials, Organic Polymer Film Casting, Magnetic Material Film Casting, Fuel Cell Proton Membrane |
Key Features
Improved Product Quality
Superior film quality through precise coating application, resulting in improved end product performance and customer satisfaction.
Improved Productivity
Streamlined processes and reduced waste mean higher yields and lower costs, maximizing your return on investment.
Production Flexibility
The ability to switch between different coating types and thicknesses allows manufacturers to quickly respond to market demands and customize products for specific applications.
Reduced Downtime
With its reliable design and easy-to-maintain features, this machine minimizes downtime, ensuring your production line runs smoothly and efficiently.
Types of Tape Casting Machines Available
Ceramic Tape Casting Machine
12 inch MCGS color touch screen, human-computer friendly interface, fully integrated interface display and control of heating, speed, liquid level, etc.
Vacuum Degassing Mixing Tank
The deaerator is a kind of mixing equipment that mixes basic materials and discharges bubbles.
Small Tape Casting Machine
The laboratory small tape casting machine is an experimental equipment for preparing polymer film materials.
Large Tape Casting Machine
The domestic cast film production line can be divided into 2500mm, 3000mm, 3500mm and 5000mm according to the film width, and can be divided into three layers, five layers and seven layers according to the configuration of the extruder.
Applications
Packaging
Ideal for producing high quality packaging films requiring precise barrier properties and adhesion.
01
Electronic
Used in the production of films for electronic devices, ensuring optimal performance and durability.
02
Automobile
Ideal for manufacturing films used in automotive applications such as protective coatings and decorative films.
03
Medical
Critical for manufacturing films used in medical devices and packaging, where precision and safety are paramount.
04
Textiles
Suitable for special finishing coatings on fabrics to enhance their functionality and aesthetics.
05
☆By courier, like DHL,UPS,FEDEX,etc.usually,3-4 days to arrive.
☆By air to the air port,usually5-7 days to arrive.
☆By sea to sea port,ususally,15-30 days to arrive.
If you delivery time is very urgent, we suggest you choose by courier or by air.
If it not very urgent,we will suggest you choose by sea,it is very cheap.
